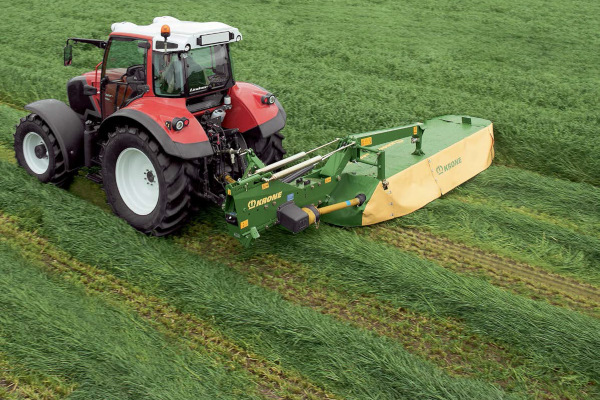

Rear-Mounted Disc Mower EasyCut R EasyCut R 360
3.60 m or 4.04 m working width
Forming two swaths or spreading the material
Hydraulic cutterbar suspension is available as an option
Excellent value for money
Features
The cutterbar
- Fully welded: Robust, sealed and permanently lubricated
- The durable satellite drives have massive spur gears for quiet running and superior efficiency
- No inner shoe for trouble-free cutting
SafeCut
- Full driveline protection for added reliability
- Neighbouring discs will not collide
- Wear-free
- Quick-change roll pins for minimum downtime and costs
SmartCut
- The wedge-shaped cutterbar guarantees clean cuts
- Heavy-duty spur gears run in widely-spaced double bearings
- Swathing or spreading depending on needs
DuoGrip
- The DuoGrip system – centre-of-gravity suspension and linkage control
- Uniform ground pressure across the entire work width
- Excellent guidance: less side thrust, clean cuts
- Short and high-strength beam
High work rates and clean cuts
- Suspension springs with central control ensure uniform cuts and an optimum ground pressure
- Ground pressure control without tools
- Hydraulic ground pressure control is an option
- Two-fold impact damage protection
Safe road travel
- The unit folds into an over-centre position, reducing the transport height and optimising the weight distribution and view to the rear
- The unit is lifted hydraulically and without raising the tractor links to make the headland turn
- Large suspension travel
Specs
| EasyCut R 360 | |
| Work width Approx. mm | 3.60 (10'4") |
| Transport height Approx. mm | 4.00 (12'10") |
| Upright transport position | 124° |
| No. of discs | 6 |
| No. of drums | 2 |
| SafeCut | Standard |
| Quick-change blades | Standard |
| Standard pto speed rpm | 540 |
| Optional pto speed rpm | 1,000 |
| Dead weight Approx. kg (lbs) | 1,040 (2,293) |
| Power requirement Approx. kW/hp | 55 / 75 |
| Mechanical pressure control | Standard |
| Hydr. pressure control | Option (1 x da) |
| No. of required spools | 1 sa / 1 da |
| Link arm pins | Cat II |
| Work rate Approx. ha/h (acres/h) |
4.0 - 4.5 (9.9 - 11.1) |
All specifications, weights and dimensions do not necessarily comply with standard specifications and are therefore not binding. All product specifications are subject to change.
