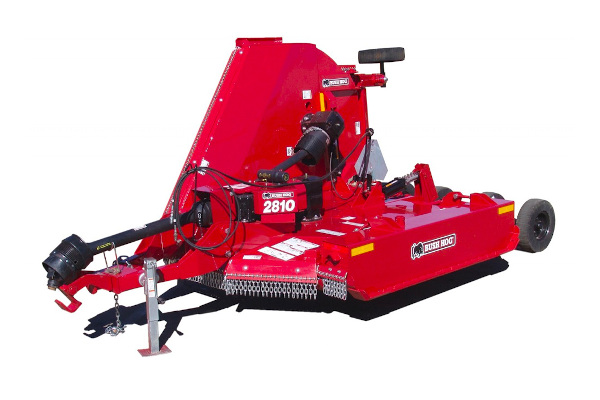

2810 Single Flex-Wing Rotary Cutters 2810
The perfect Flex-Wing for mowing narrow highway right-of-ways.
The right-hand wing model 2810 is easier to service and has features that maximize performance and durability in all uses. Made especially for highway right-of-way mowing or other areas where the Flex-Wing with a single wing is the best fit, the 2810 is... + Read More
Features
Performance Features
- Wing skids and center skids are 3/8” thick for extended wear and outside edges are turned up at 45 degrees to stop heavy ground contact that might damage the sidebands.
- Center section blades properly align with center wheels to closely cut out the bottom of ditches.
- Grease fittings and spring steel bushings at axle pivot points for longer life.
- Free wing float without movement of the hydraulic cylinder rod is 22 degrees down and 45 degrees up.
Construction Features
- Industry first, massive 3-inch output shaft with up to 27% more splines than smaller shafts for maximum transmission of torqueto blade pan.
- The Patent Pending oil sight gauge takes the guess work out of checking the oil. In less than 10 seconds, all three cutting box oil levels can be checked and rechecked as often as you walk around the machine. Never climb onto the cutter again to check the gearbox oil levels.
- Bush Hog’s E-Z lube drivelines are quick and easy to service. All grease fittings on the pto CV driveline and wing drivelines align for quick location of grease points. Since all grease fittings on all drivelines are in an up position on every 5th revolution, service times are reduced.
Safety Features
- Highway safety lighting is standard.
Specs
| MODELS | 2810 |
| CUTTING WIDTH | 10' 6" |
| CUTTING HEIGHT | 2″ -14″ |
| CUTTING CAPACITY | 4" |
| TRANSPORT WIDTH* | 8' 2" |
| TRANSPORT HEIGHT** | 7' 3" |
| TRANSPORT LENGTH*** | 15' 3" |
| APPROXIMATE WEIGHT (LB) | 5,000 |
| APPROXIMATE TONGUE WEIGHT (LB.) | 1,800 |
| MINIMUM TRACTOR PTO HP | 60 |
| HITCH | "PERMA-LEVEL" |
| CENTER DECK | 11GA OVER 7GA |
| WING DECKS | 7GA |
| WING CUTTING ANGLES | 22° DOWN AND 45° UP |
| WING LEVEL ADJUSTMENT | TURNBUCKLES |
| SIDEBANDS | 1/4″ X 13 1/2″ |
| TRANSFER GEARBOX (HP) | 250 |
| CUTTING GEARBOX (HP) | 225 |
| INPUT DRIVELINE | CATEGORY 6 |
| CUTTING DRIVELINES | CATEGORY 4 |
| BLADE HOLDER | 7GA ROUND |
| BLADES | 1/2″ X 4″ |
| BLADE TIP SPEED (FPM) | 16,268 |
| AXLE SUSPENSION | SPRINGS @ EACH AXLE |
| CENTER & WING HYDRAULICS | 3 HOSES STANDARD |
| SAFETY TOW CHAIN | STANDARD |
| DISTRIBUTION BAFFLES | OPTIONAL |
| PTO DRIVELINE SUPPORT | OPTIONAL |
|
*Measured from Wing Skid to Wing Skid when Folded **Measured at Maximum Transport Height ***Measured from hitch tip to rear of 21″ Laminated Tire |
