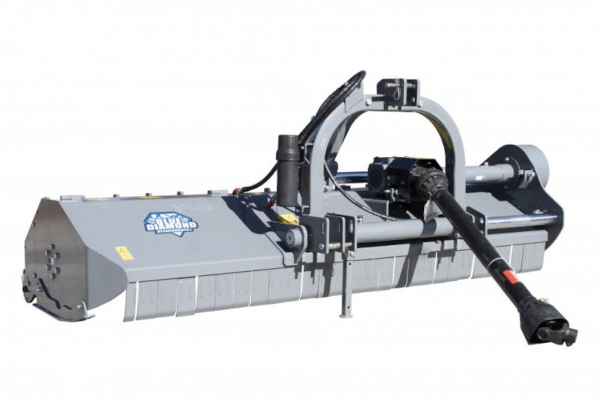

Tractor Attachments Flail Mower
The Blue Diamond® Flail Mower is suitable for tractors from 35 hp to 100 hp with Category 1 or 2 hitches. It utilizes a wide mowing width (up to 98” wide) and has multi-purpose capability allowing it to mow grass and brush (1.5” thickness) by means of flails or hammers. Hydraulic side shift, rear roller, and rakes are standard.
Features
- Multi-purpose for grass and brush up to 1.5”
- Dual tapered bearing design for easy adjustment
- Minimum tractor weight of 2,000 lbs
- Counterweight recommended
- 1.5” brush capacity
- Hydraulic side shift
- Rear anti-scalp roller
- 2-year warranty
Specs
| STANDARD DUTY | |||
| PART NUMBER | 403710 | 403720 | 403730 |
| SIZE | 69" | 81" | 87" |
| OVERALL WIDTH | 69" | 75.5" | 87.4" |
| MOWING WIDTH | 63" | 69" | 80.7" |
| TRACTOR HP RANGE | 35-70 | 40-70 | 45-70 |
| 3-POINT HITCH TYPE | Category 1 | Category 1 | Category 1 |
| HYDRAULIC OFFSET | 12" | 12" | 12" |
| NUMBER OF HAMMERS | 20 | 22 | 26 |
| WEIGHT W/OUT PTO | 908 lbs | 957 lbs | 1,063 lbs |
| BELTS | 4 | 4 | 4 |
| HEAVY DUTY | ||
| PART NUMBER | 403740 | 403750 |
| SIZE | 87" | 98" |
| OVERALL WIDTH | 96" | 106" |
| WORKING WIDTH | 87" | 98" |
| TRACTOR HP RANGE | 50-100 | 50-100 |
| 3-POINT HITCH TYPE | Category 2 | Category 2 |
| HYDRAULIC OFFSET | 15" | 15" |
| NUMBER OF HAMMERS | 20 | 24 |
| NUMBER OF BLADES | 60 | 72 |
| ROLLER DIAMETER | 6.69" | 6.69" |
| ROTAR DIAMETER | 6.69" | 6.69" |
| WEIGHT W/OUT PTO | 1,726 lbs | 1,907 lbs |
| BELTS | 4 | 5 |
